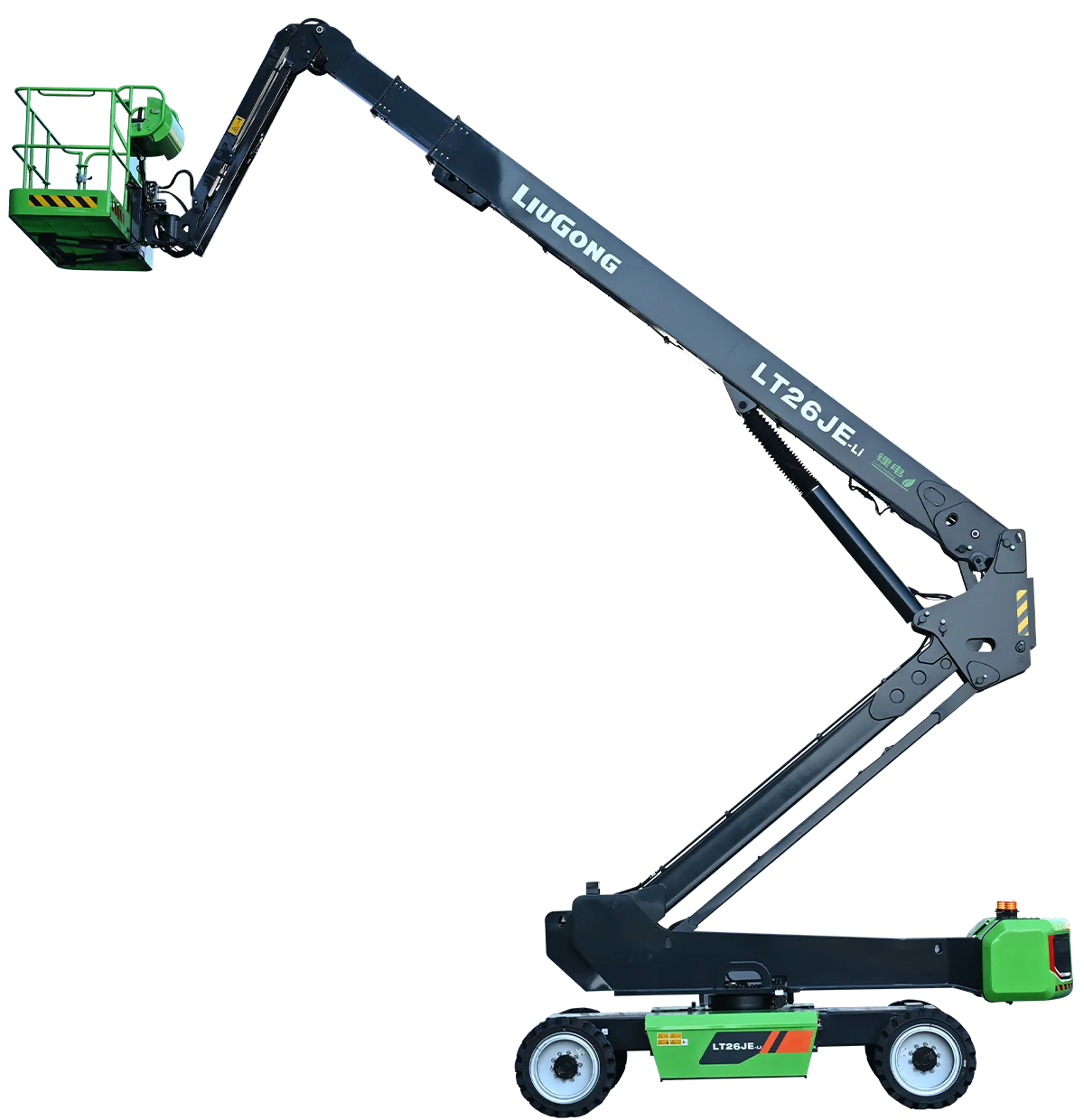

Articulating Boom

Safe and Reliable

  • High quality tilt and weight sensor, for safe and reliable operation;
  • Modern electronic control system to provide security and safety;
  • The protection level of components of the whole machine is above IP65

Intelligent and efficient

  • The turntable rotation 360° continuously with compact tail, suitable for narrow space operation;
  • Combine calibration with intelligent and efficient system;
  • Oscillating axles as standard;
  • Four wheel strong AC electric drive, climbing capacity up to 45%, strong trafficability;
  • High-power charger, large-capacity power battery, fast charging, ultra-long endurance

Energy saving and comfort

  • Smooth descent on all booms;
  • Automatic deceleration at the action limit position, stable action, proportionate control;
  • ECU control ensures optimize battery usage.

Green and environmental protection

  • Pure electric power, low use and maintenance cost, high return on investment;
  • Green and environmental protection, no emission, low noise, meet indoor and outdoor working conditions.

Standard configuration

    Platform work lights · Working strobe lamp · Load Sensing System · Electro hydraulic proportional control · Automatic brake system · Tilt protection system · Telematics-BOX · Electric emergency descent system · Manual emergency descent system · Emergency stop system · Anti entrapment device · Remote fault diagnosis system · Overload protection · Efficient alarm warnings
Driving Motor
52 VAC / 5.2 kW
83.2 V / 460 Ah
Platform Load
300 / 454 kg
Max.Work Height
28.1 m


Download a brochure


Max.Working Height
Max.Platform Height
26.1 m
Max.Operating Range
19.88 m
Platform Size (L×W×H)
2.4 × 0.9 × 1.1
Platform Load (Unrestricted)
300 / 454 kg
Max. Platform Occupants
Max.Working Slope
X-5° / Y-5°
Overall Weight
15,000 kg
83.2 V / 460 Ah
Driving Motor
52 VAC / 5.2 kW
Lifting Motor
52 VAC / 30 kW
