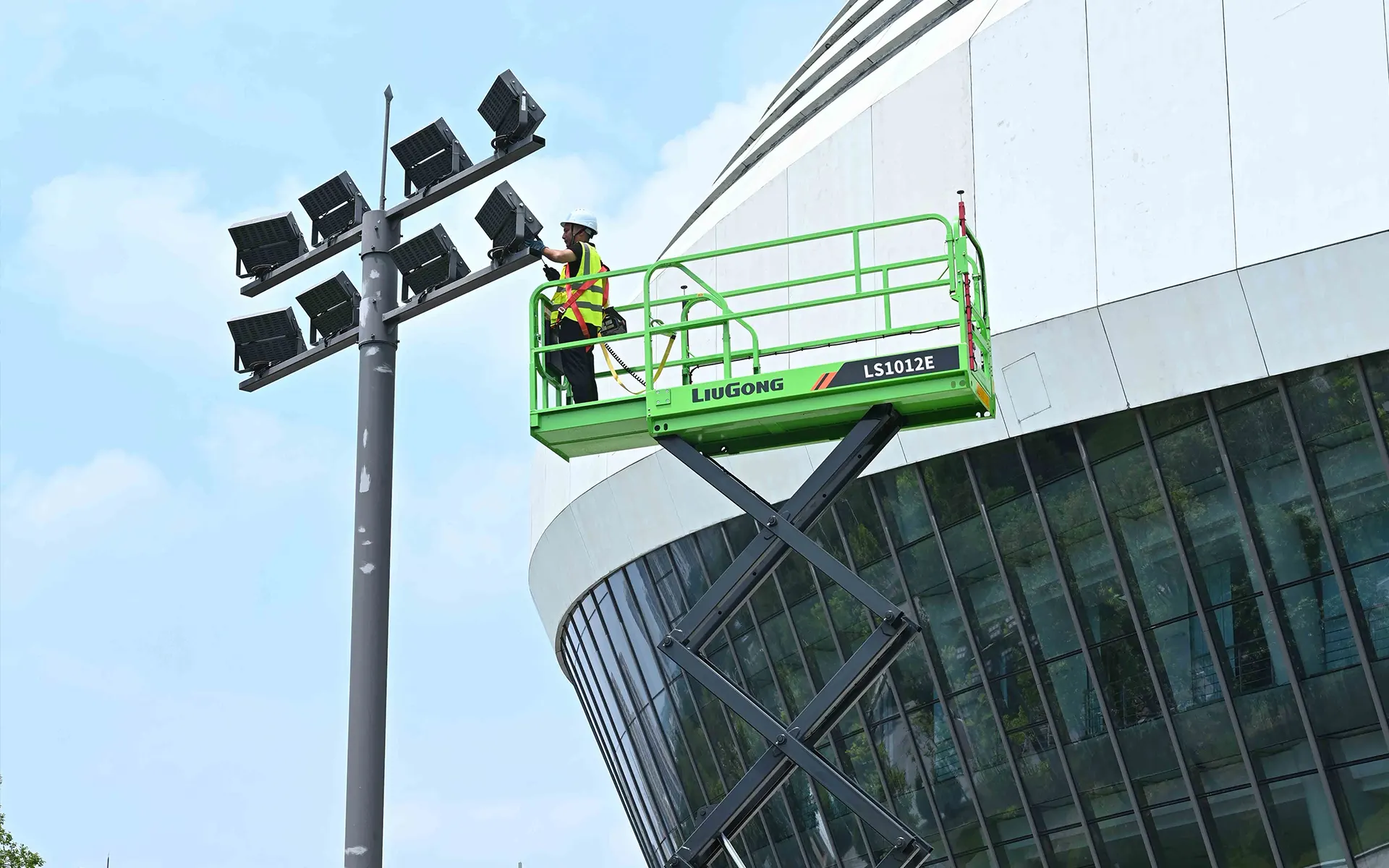

LS1012E
Electric Scissor
Lift E-Drive
Security and Intelligence
- Intelligent control system, real-time monitoring of equipment status;Multiple security protection to ensure personnel safety;Intelligent charging system to extend battery life.
Easy to Control
- Drivable at full height to improve working effificiency;The proportion drops and the descent moves smoothly;Forklift pocket, easy to load, unload and transport.
Maintenance Friendly
- Self-lubricating sleeve;Swing-out tray on both sides, easy maintenance;Fault code indication to facilitate troubleshooting
Max.Work Height
12 m
Overall Length/Width
2.49 * 1.19 m
Battery
24 V / 225 Ah
Overall Lift Capacity Max.
350 kg
Specification
Download a brochureLS1012E
Max.Working Height
12 m
Max.Platform Height
10 m
Min.Platform Height
1.39 m
Platform Size（L×W）
2.28 * 1.15 m
Overall Lift Capacity Max.
350 kg
Max. Platform Occupants
2
Gradeability
25%
Tilt Sensor Activation
X1.5° / Y3°
Overall Weight
2780 kg
Battery
24 V / 225 Ah
Lift Motor
24 V / 3.3 kW
