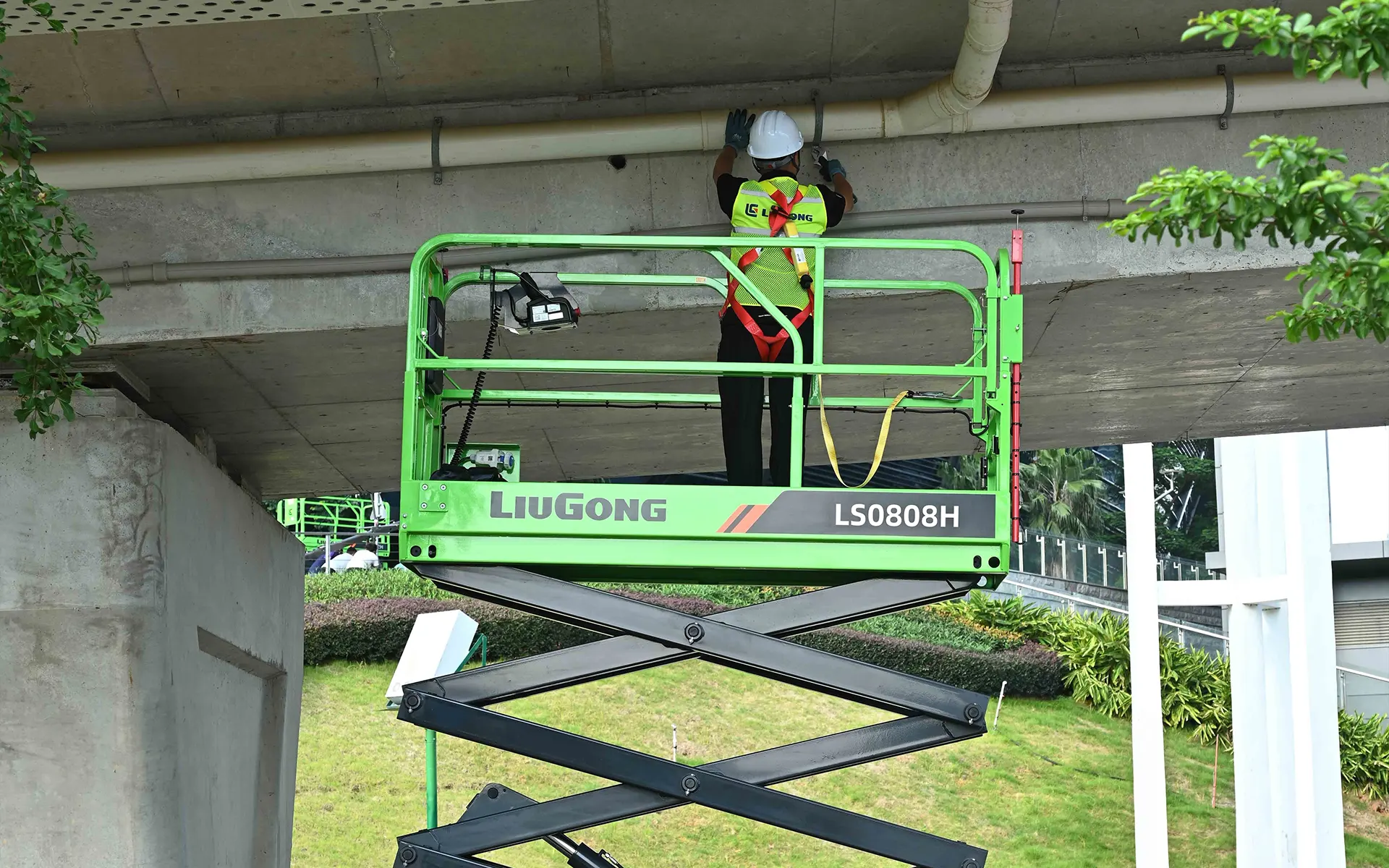

LS0808H
Electric Scissor
Lift H-Drive
Security and Intelligence
- Intelligent control system, real-time monitoring of equipment status; Multiple security protection to ensure personnel safety; Intelligent charging system to extend battery life.
Easy to Control
- Drivable at full height to improve working effificiency; The proportion drops and the descent moves smoothly; Forklift pocket, easy to load, unload and transport.
Maintenance Friendly
- Self-lubricating sleeve; Swing-out tray on both sides, easy maintenance; Fault code indication to facilitate troubleshooting
Max.Work Height
10 m
Overall Length/Width
2.49 * 1.19 m
Battery
24 V / 225 Ah
Overall Lift Capacity Max.
230 kg
Specification
Download a brochureLS0808H
Max.Working Height
10 / 8 m
Max.Platform Height
8 / 6 m
Min.Platform Height
1.22 m
Platform Size（L×W）
2.28 × 1.15 m
Overall Lift Capacity Max.
230 kg
Max. Platform Occupants
2
Gradeability
25%
Tilt Sensor Activation
X1.5° / Y3°
Overall Weight
2200 kg
Battery
24 V / 225 Ah
Lift Motor
24 V / 3.3 kW
