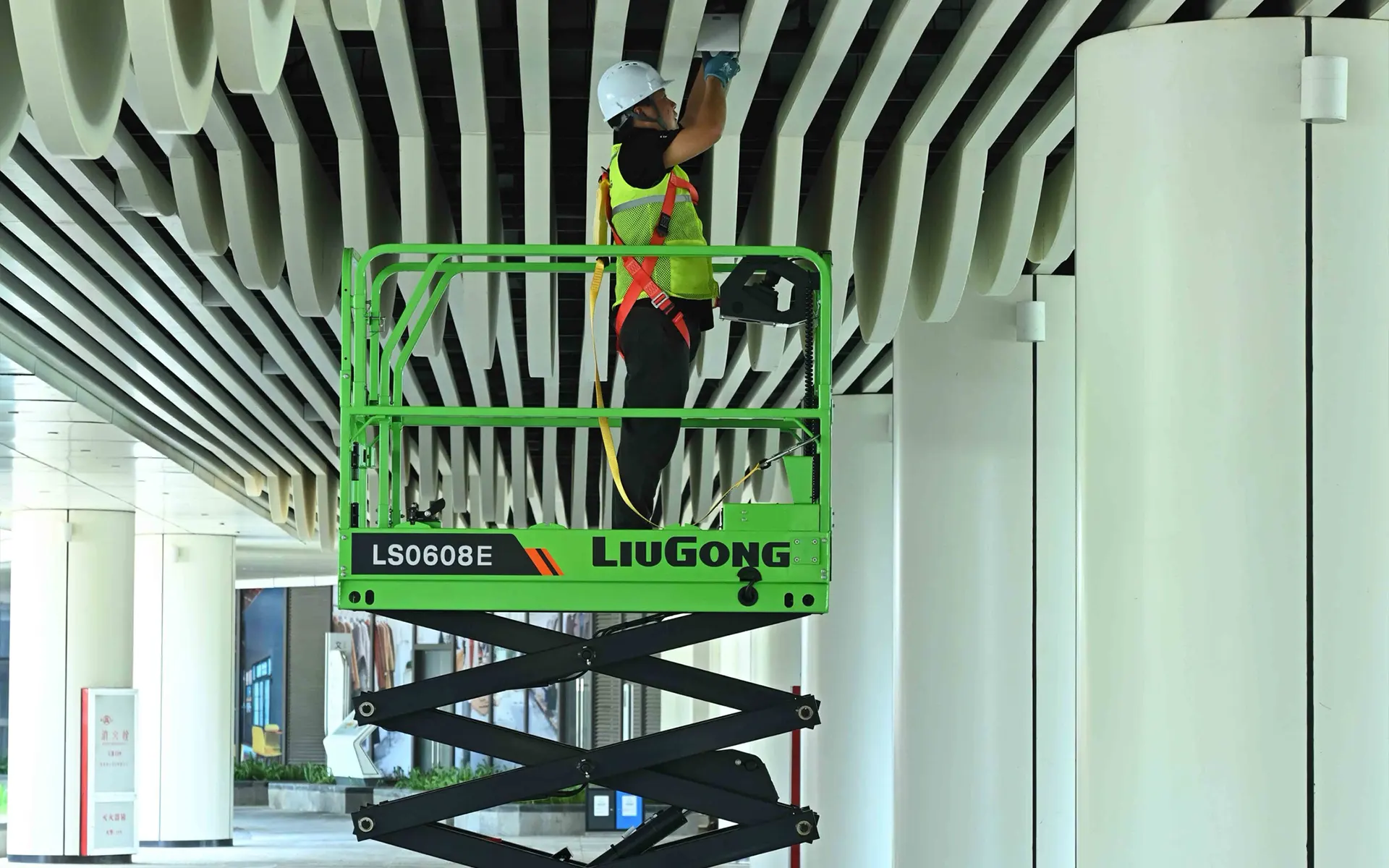

LS0608E
Electric Scissor
Lift E-Drive
Security and Intelligence
- Intelligent control system, real-time monitoring of equipment status;Multiple security protection to ensure personnel safety;Intelligent charging system to extend battery life.
Easy to Control
- Drivable at full height to improve working effificiency;The proportion drops and the descent moves smoothly;Forklift pocket, easy to load, unload and transport.
Maintenance Friendly
- Self-lubricating sleeve;Swing-out tray on both sides, easy maintenance;Fault code indication to facilitate troubleshooting
Max.Work Height
7.8 m
Overall Length/Width
1.86*0.785 m
Battery
24 V / 225 Ah
Overall Lift Capacity Max.
230 kg
Specification
Download a brochureLS0608E
Max.Working Height
7.8 m
Max.Platform Height
5.8 m
Min.Platform Height
1 m
Platform Size（L×W）
1.64 x 0.75 m
Overall Lift Capacity Max.
230 kg
Max. Platform Occupants
2
Gradeability
25%
Tilt Sensor Activation
X1.5° / Y3°
Overall Weight
1540 kg
Battery
24 V / 225 Ah
Lift Motor
24 V / 3.3 kW
