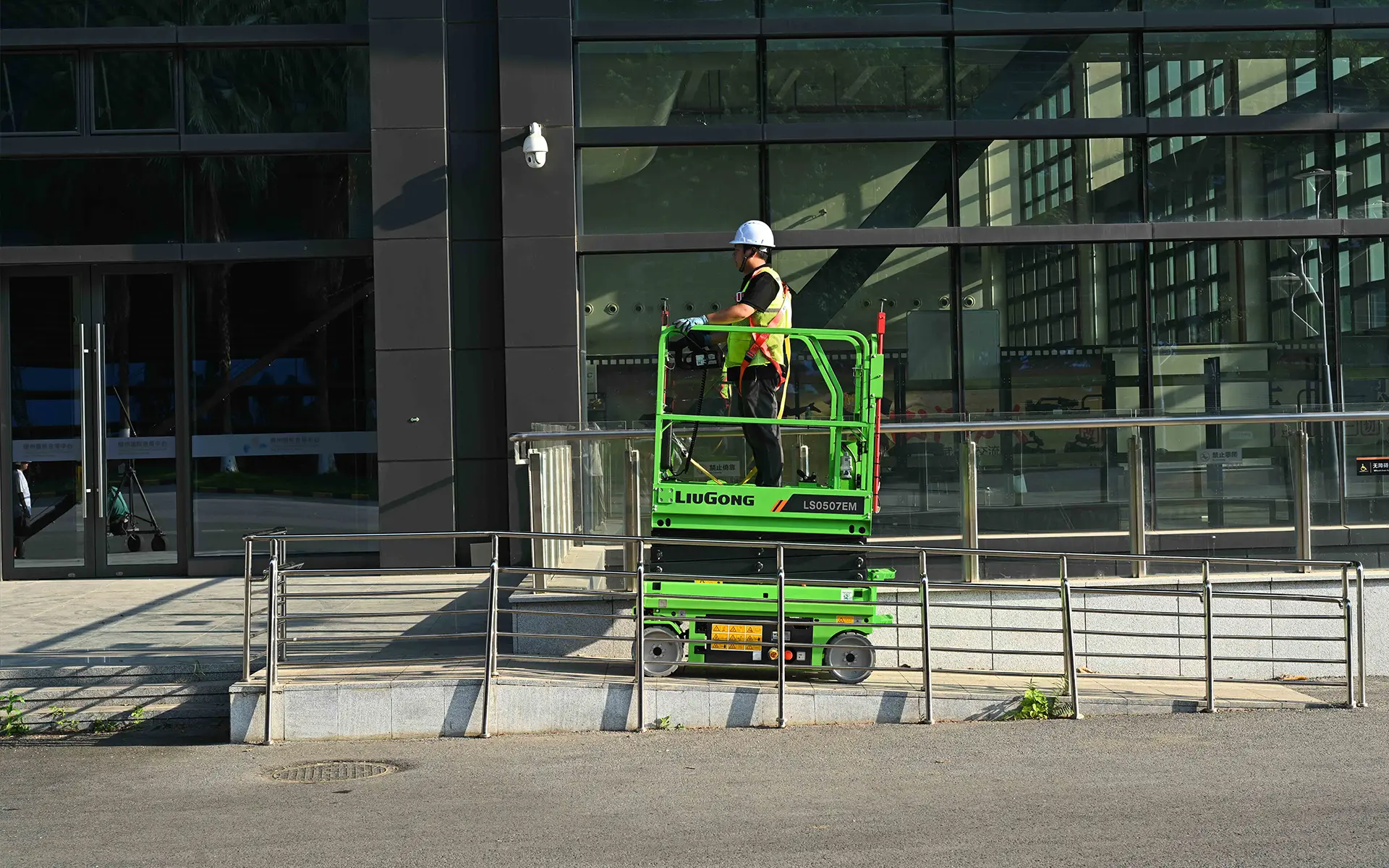

LS0507EM
Electric Scissor
Lift E-Drive
Security and Intelligence
- Intelligent control system, real-time monitoring of equipment status;Multiple security protection to ensure personnel safety;Intelligent charging system to extend battery life.
Easy to Control
- Drivable at full height to improve working effificiency;The proportion drops and the descent moves smoothly;Forklift pocket, easy to load, unload and transport.
Maintenance Friendly
- Self-lubricating sleeve;Swing-out tray on both sides, easy maintenance;Fault code indication to facilitate troubleshooting
Max.Work Height
6.5 m
Overall Length/Width
1.49 * 0.76 m
Battery
24 V / 225 Ah
Overall Lift Capacity Max.
240 kg
Specification
Download a brochureLS0507EM
Max.Working Height
6.5 m
Max.Platform Height
4.5 m
Min.Platform Height
0.95 m
Platform Size（L×W）
1.3 x 0.72 m
Overall Lift Capacity Max.
240 kg
Max. Platform Occupants
2
Gradeability
25%
Tilt Sensor Activation
X1.5° / Y3°
Overall Weight
970 kg
Battery
24 V / 100 Ah
Lift Motor
24 V / 1.3 kW
