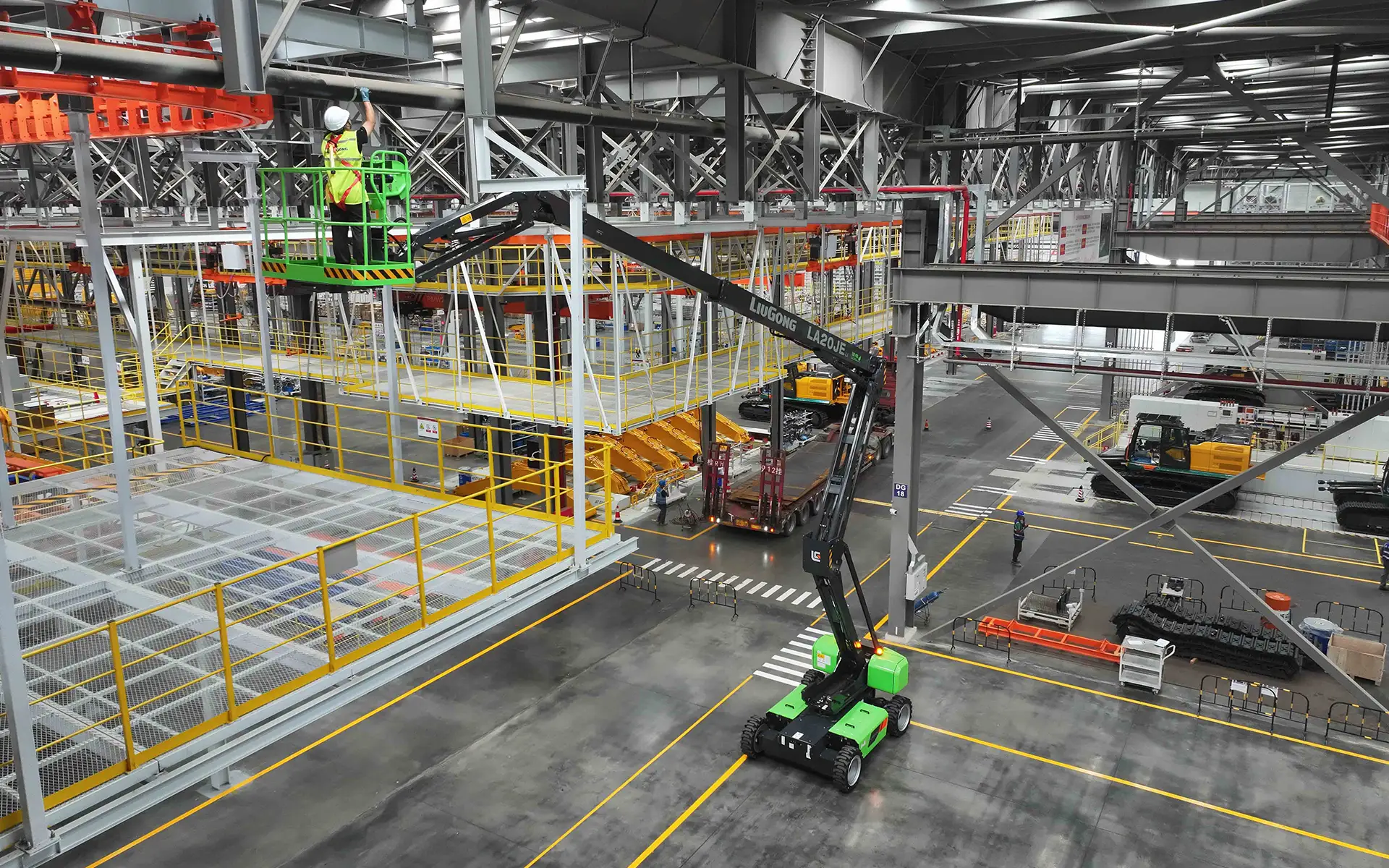

LA20JE
Articulating Boom
Lifts-Electric
Safe and Reliable
- High quality tilt and weight sensor, for safe and reliable operation;
- Modern electronic control system to provide security and safety;
- The protection level of components of the whole machine is above IP65
Intelligent and efficient
- The turntable rotation 360° continuously with compact tail, suitable for narrow space operation;
- Combine calibration with intelligent and efficient system;
- Oscillating axles as standard;
- Four wheel strong AC electric drive, climbing capacity up to 45%, strong trafficability;
- High-power charger, large-capacity power battery, fast charging, ultra-long endurance
Energy saving and comfort
- Smooth descent on all booms;
- Automatic deceleration at the action limit position, stable action, proportionate control;
- ECU control ensures optimize battery usage.
Green and environmental protection
- Pure electric power, low use and maintenance cost, high return on investment;
- Green and environmental protection, no emission, low noise, meet indoor and outdoor working conditions.
Standard configuration
-
Platform work lights
· Working strobe lamp
· Load Sensing System
· Electro hydraulic proportional control
· Automatic brake system
· Tilt protection system
· Telematics-BOX
· Electric emergency descent system
· Manual emergency descent system
· Emergency stop system
· Anti entrapment device
· Remote fault diagnosis system
· Overload protection
· Efficient alarm warnings
Driving Motor
32 VAC / 3.3 kW
BATTERY
48 V / 460 Ah
Platform Load
320 kg
Max.Work Height
22.2 m
Specification
Download a brochureLA20JE
Max.Working Height
21.5
Max.Platform Height
19.5 m
Max.Operating Range
14 m
Platform Size (L×W×H）
1.83 × 0.76 × 1.1
Platform Load (Unrestricted)
320 kg
Max. Platform Occupants
2
Gradeability
45%
Max.Working Slope
X-5° / Y-5°
Overall Weight
9,500 kg
Battery（Lithium）
48 V / 460 Ah
Driving Motor
32 VAC / 3.3 kW
Lifting Motor
31 VAC / 10 kW
