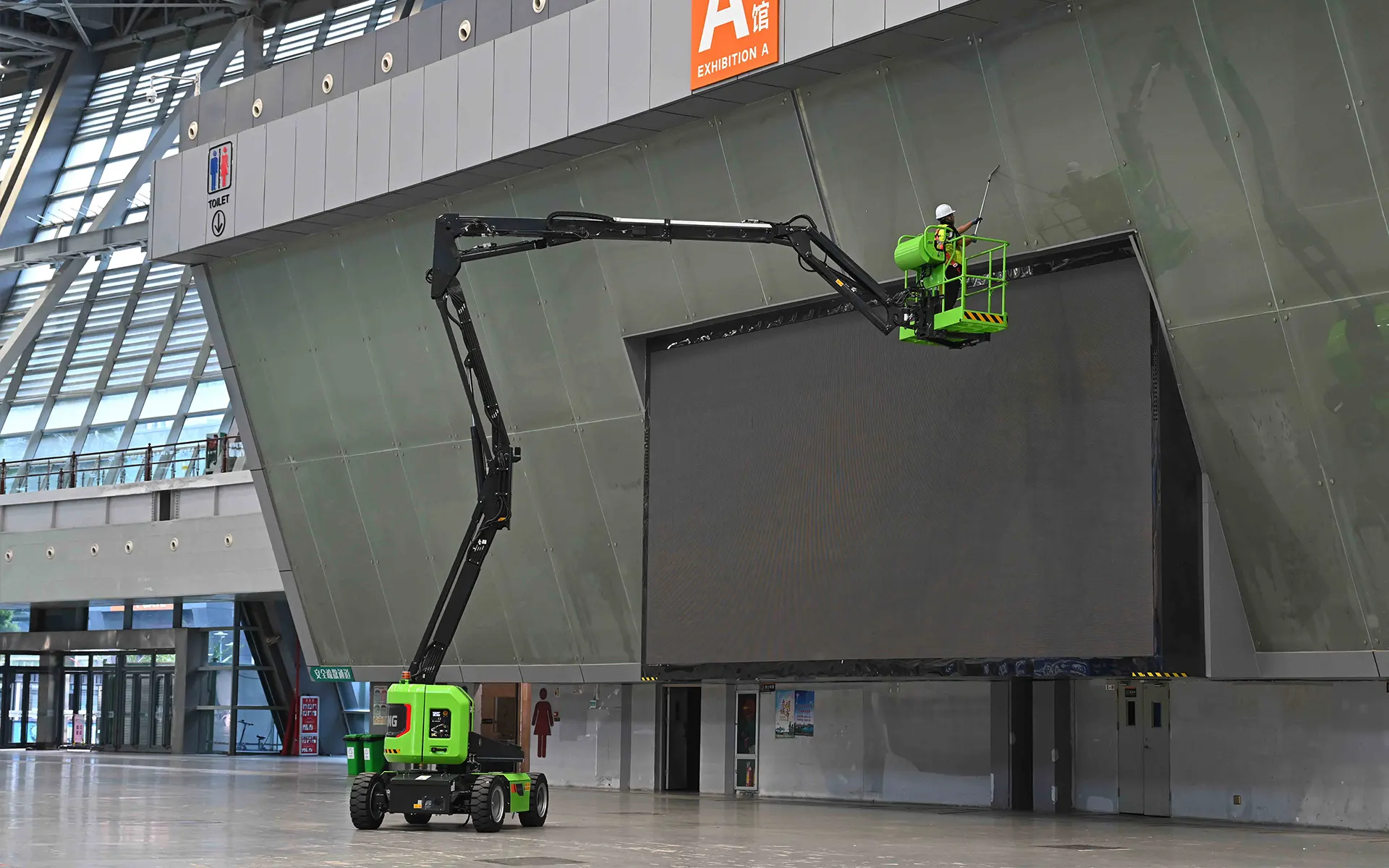

LA14JE
Articulating Boom
Lifts-Electric Drive
Safe and Reliable
- Working platform overload protection, 230kg unlimited; High precision working platform weighing sensor, continuous monitoring of platform load;Imported hydraulic and electraical compenents,work more reliable.
Efficient And Comfortable
- Electro-hydraulic proportional control technology, smooth and comfortable work;Combination leveling mechanism, work more stable; Integrated swivel mechansim, swivel more smoothly; AC walking drive control system, strong power, drive more effificient.
Compact Structure
- Zero swing tail, suitable for small space operation; Combined boom structure, strong ability of obstacle crossing.
Maintenance is Convenient
- Self-lubricating bearing; Real-time monitoring and transmission of vehicle information; Screw out battery box; Working condition information recording; History fault record query;
Max. Work Height
15.7 m
Max. Operating Range
8.26 m
Battery
51.2V / 304 Ah
Platform Load
230 kg
Specification
Download a brochureLA14JE
Max.Working Height
16 m
Max.Platform Height
14 m
Max.Operating Range
8.35 m
Platform Size (L×W×H）
1.83×0.76×1.1 m
Platform Load (Unrestricted)
260 kg
Max. Platform Occupants
2
Gradeability
30%
Max.Working Slope
X-5° / Y-5°
Overall Weight
6980 kg
Battery（Lithium）
51.2V/304Ah
Driving Motor
AC 3.3 kW
Lifting Motor
AC 7 kW
