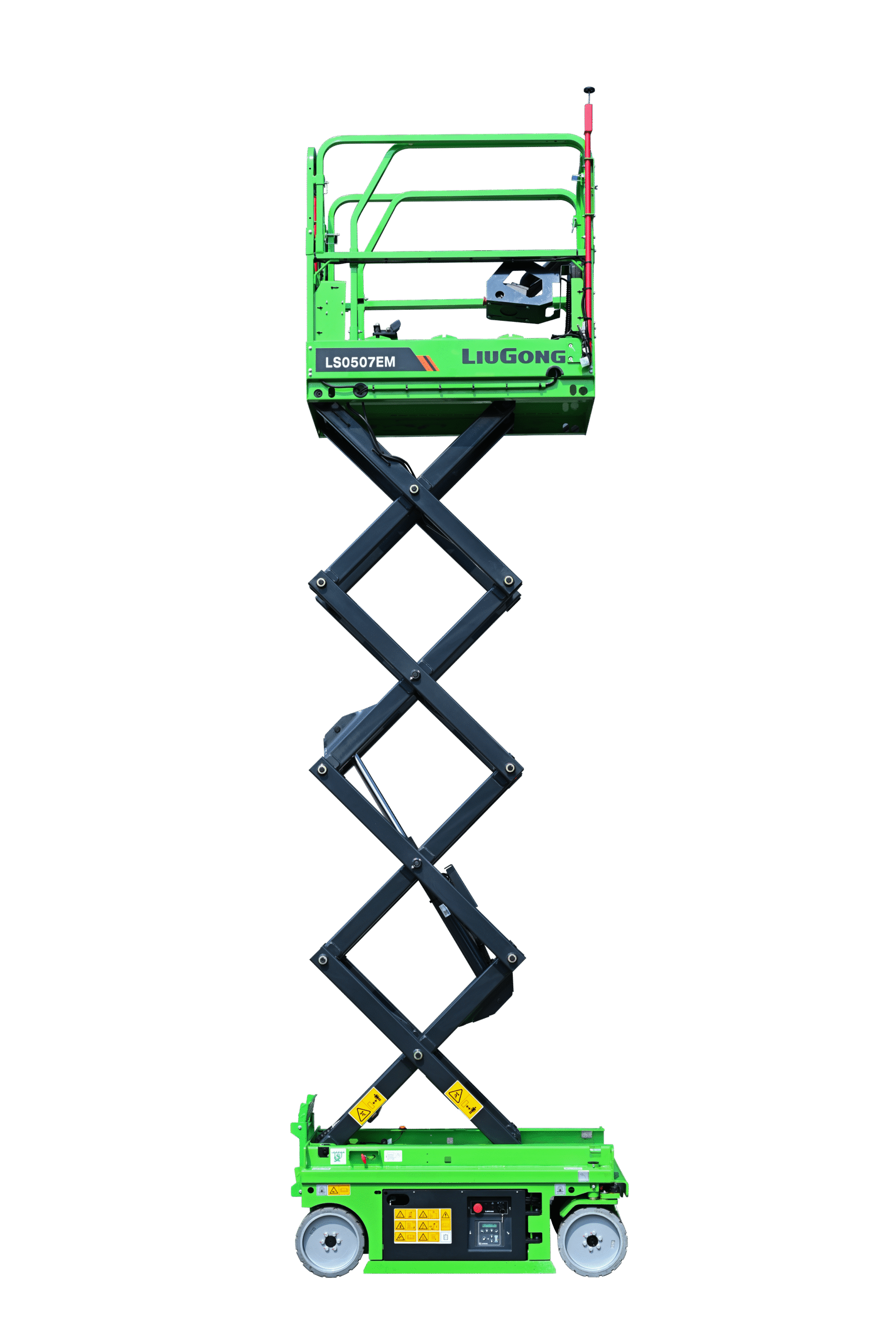

LSC0507DEM
ELECTRIC
SCISSOR LIFT
Security and Intelligence
- Intelligent control system.real-time monitoring of equipment status;
- High quality sensors for weight and tilt to ensure personnel safety;
- Intelligent/Flexible charging system to extend battery service life
Easy to Control
- Drivable at full height to improve working efficiency;
- The proportionate ascent and descent functionality smoothly；
- Forklift pocket. easy to load，unload and transport. Side pocket on larger machines；
Maintenance Friendly
- Self-lubricating pins;
- Swing-out tray on both sides for easy maintenance;
- Clear indication to facilitate troubleshooting.
Standard Features
-
Standard longitudinal forklift sprocket hole
· Side anti-collision function
· Extension platform
· Active pothole protection
· All motion alarm
· Emergency lowering system
· Safety descend stop as per EN280
· Charging protection system
· Emergency stop button
· Proportionate control
· Acoustic-optical warning
· Drivable at full height
· Folding guardrails
· Tilt and weight protective system
DRIVE MOTOR
0.4 kW
BATTERY
95 Ah
Platform Load
240 kg
Max.Work Height
6.5 m
Specification
Download a brochureLA20JE
Max.Working Height
6.5 m
Max.Platform Height
4.6 m
Min.Platform Height
0.94 m
Platform Length
1.3 m
Platform Load (Unrestricted)
240 kg
Max. Platform Occupants
2
Gradeability
25%
Max.Working Slope
X1.5° / Y3°
Overall Weight
895 kg
Battery（Lithium）
95 Ah
Driving Motor
0.4 kW
