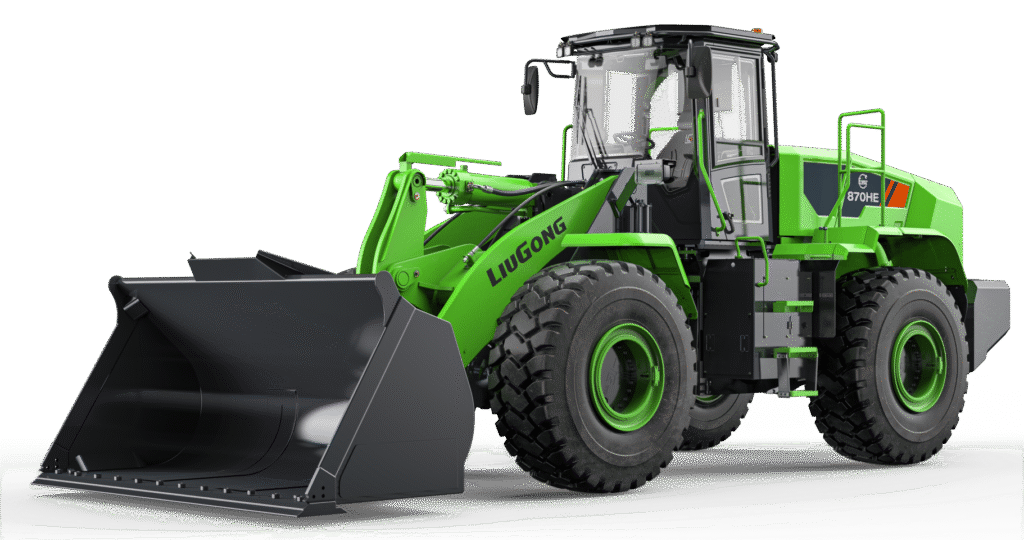

870HE
Electric Wheel
Loaders
BATTERY TYPE
LFP
Net Power
423 kW
Operating Weight
24,640 kg
Bucket Capacity
4.7 m³
Product Features
- The largest tonnage pure electric loader with the longest application time in the industry.
- With LiuGong 's unique machine matching technology, it can ensure that the mechanical performance can be adapted to all kinds of harsh working conditions and bring more efficient benefits to customers
Specification
Download a brochure870HE
Rated Storage Energy
423 kWh
Peak Power
160 kW
Rated Load Capacity
7,500 kg
Operating Weight
24,640 kg
Standard Bucket Capacity
4.7 m³
Bucket Breakout Force
221 kN
Standard Dump Clearance
3,101 mm
Shipping Dimension L*W*H
9145*3210*3550 mm
Tipping Load - Straight
19,000 kg
Tipping load - full turn
16,800 kg
Fastest Total Cycle Time
9.5 s
